BIOS Configuration

1. Restore BIOS factory defaults.

2. Modify the BIOS settings as follows:

   1. Choose BIOS > Advanced > MISC Config and set Support Smmu to Disabled, as shown in Figure 1.

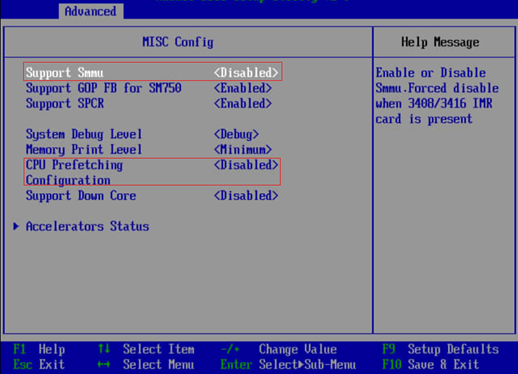

      Figure 1 Modifying BIOS settings (1)


   2. Choose BIOS > Advanced > MISC Config and set CPU Prefetching Configuration to Disabled, as shown in Figure 1.

   3. Choose BIOS > Advanced > Memory Config and set Die Interleaving to Disable, as shown in Figure 1.

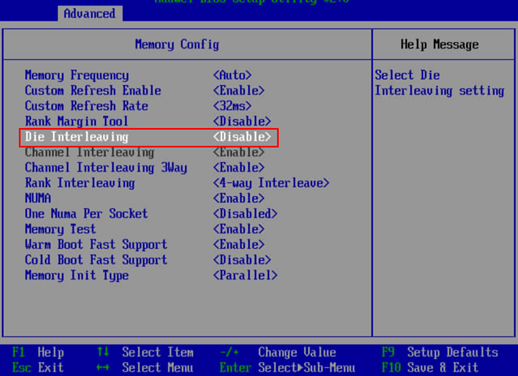

      Figure 2 Modifying BIOS settings (2)


3. Restart the BIOS.
