Global SysCache

Availability

This feature is available since openGauss 3.0.0.

Introduction

Global SysCache is the global and local caches of system catalog data. Figure 1 illustrates the principle.

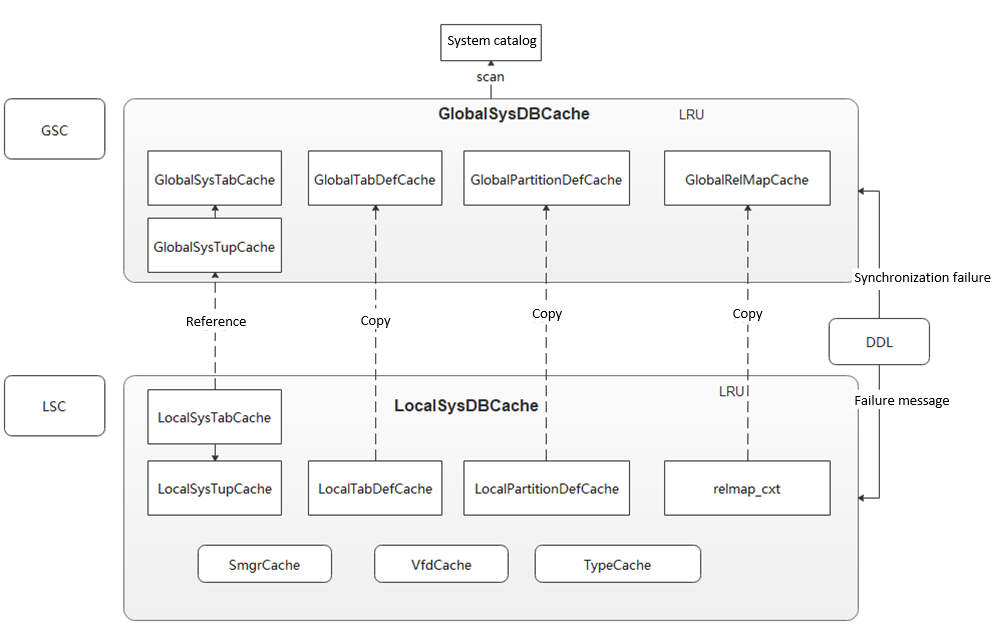

Figure 1 Global SysCache principle

Benefits

Global SysCache reduces the cache memory usage of database processes and improves the concurrent expansion capability of a database.

Description

Global SysCache decouples the system cache from sessions and binds them to threads to reduce the memory usage together with the thread pool feature. In addition, it is used to improve the cache hit rate and ensure stable performance.

Enhancements

Supports more concurrent queries.

Constraints

• Set enable_global_syscache to on. You are advised to set enable_thread_pool to on.
• When the number of databases is large and the value of global_syscache_threshold is small, memory control cannot work properly and the performance deteriorates.
• Distributed time series tasks are not supported. The memory control and performance of these tasks are not affected by the GSC feature.
• If wal_level is set to minimal or archive, the query performance of the standby server deteriorates and short connections are used.

Dependencies

The memory reduction capability of this feature depends on the thread pool feature.
